"Slide Rule Instruction Guide, Photos And Information Etc."



Click Here For Link To Trigonometric Functions.

Pickett manufactured large slide rules for mounting in the class room. They came in 4 foot and 7 foot versions. The stock and slide are of plywood (tongue and grooved), the end brackets are sheet aluminum. The cursor consisted of pine with aluminum paint, with a clear plastic lens. Both sizes came with metal eye loops for hanging from a wall or ceiling.

This is a large slide rule that is made to hang on the wall of the classroom above the chalk board. The teacher sticks his or her finger in a hole and hauls (pulls) the tongue back and forth.  If the teacher is not paying attention he or she may then  can get his finger cut clean off when it hits the metal end. It is made of yellow painted plywood and measures 84 x 10.5 x 0.75 inches closed.

Price was $25 in 1960. Pickett supplied these slide rule instructional pamphlets free to the schools with a minimum purchase of 24 normal slide rules.

Pickett was the Slide Rule which made the trip to the Moon Possible and was on board with the Astronauts making the calculations necessary for the successful round trip of "Apollo 13".

K&E (Keuffel & Esser) was the Slide Rule which invented the Atomic Bomb and the other Atomic Devices of the 1930's and 1940's.

Important Instructional & Education in the use of the slide rule links follow immediately below, next on this page.




"Pickett Supplied These Slide Rule Instructional Pamphlets with Slide Rules"

Click Here Or Photo Below For Download of Teaching Guide (17.7 meg, 48 Page Teachers Guide).

Provided By Pickett; Known As Pickett Teaching Guide 601 (17.7 meg, 48 Page Teachers Guide).


"K&E (Keuffel & Esser) Polyphase Slide Rule Instructional Book Supplied with Slide Rules"

Click Here: K&E Keuffel & Esser Polyphase Slide Rule Manual K&E Manual Download (22MB .pdf ).

The Important Polyphase Booklet with Great How To Examples of Almost Every Scientific Possibility And Formula.

(Click Here: 22MB .pdf Book Download)

Click Here: K&E Keuffel & Esser Polyphase Slide Rule Manual K&E Manual Download (22MB .pdf ).

Click Here: My Copy of The Book, Back-up, Better Book To Scan K&E (Keuffel & Esser) Polyphase Slide Rule Manual K&E Manual Download (18.9 MB .pdf ).

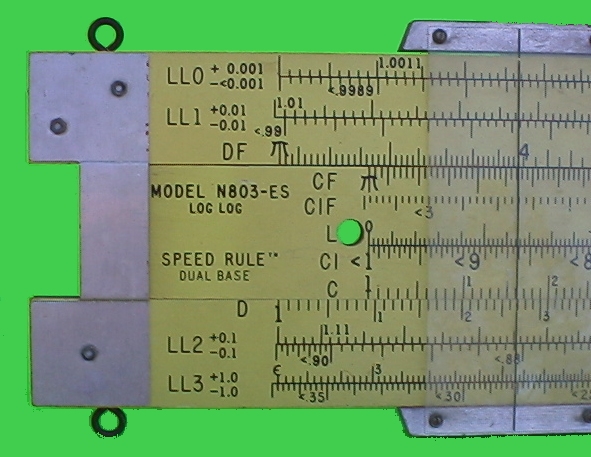

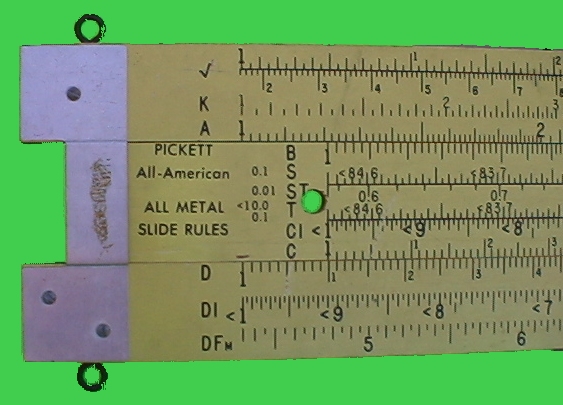

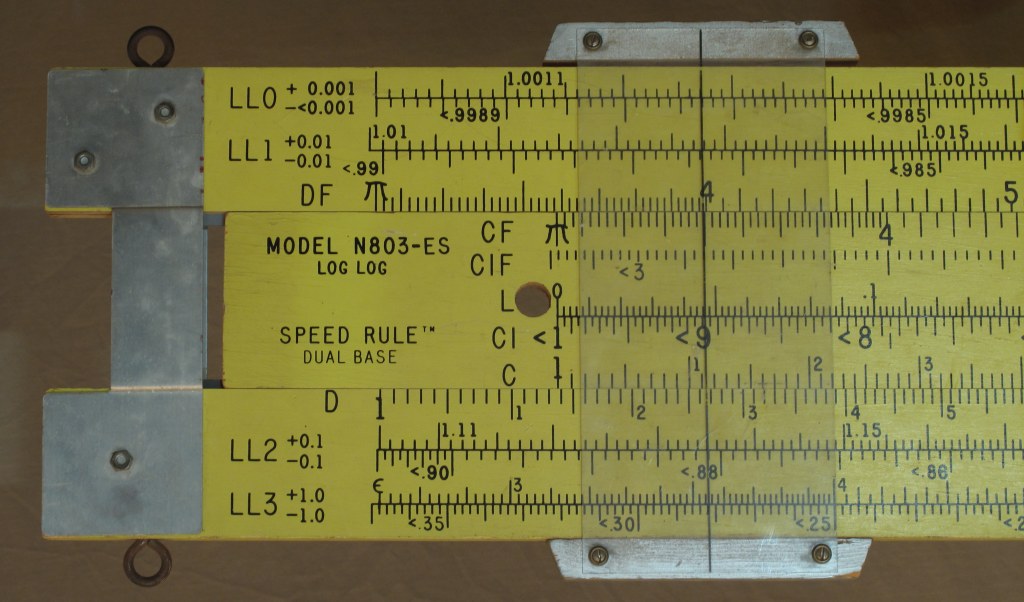

Pickett Model N803-ES Log Log 9Next Below).

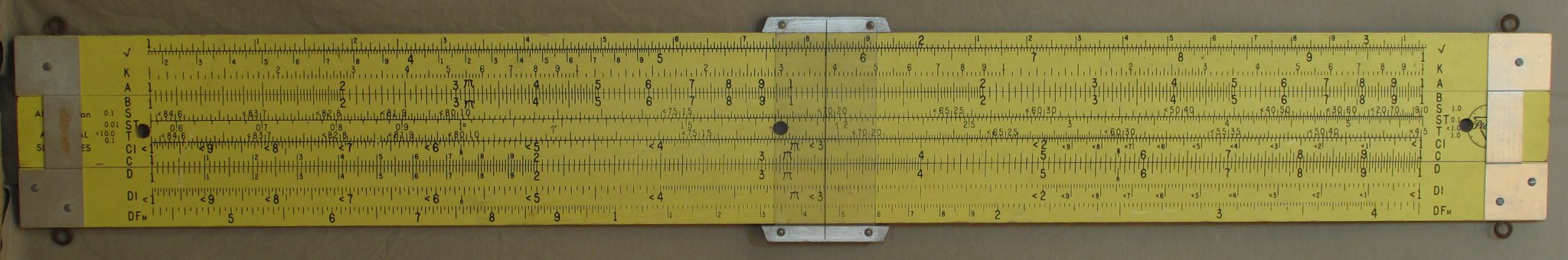

7 foot slide rule

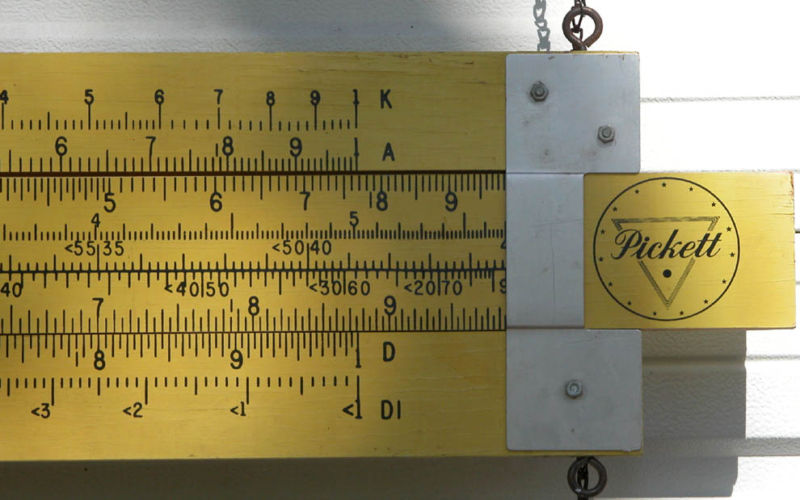

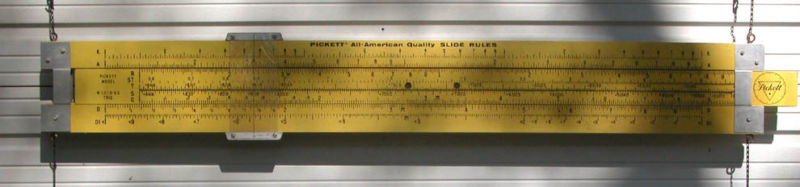

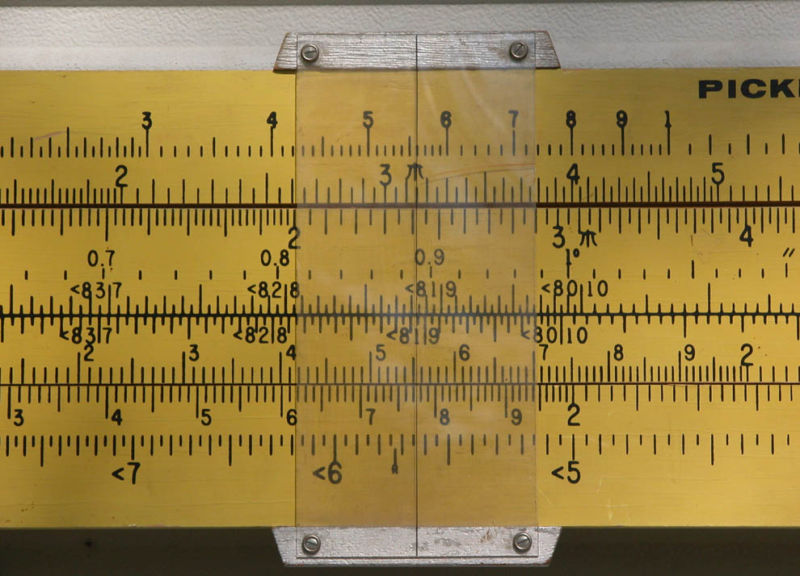

7' Pickett Front Side Detail Next Below

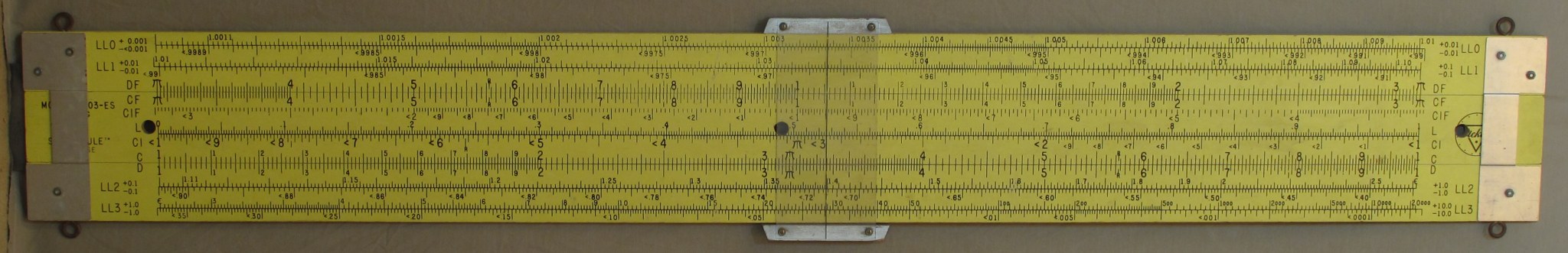

7' Pickett Back Side Detail Next Below

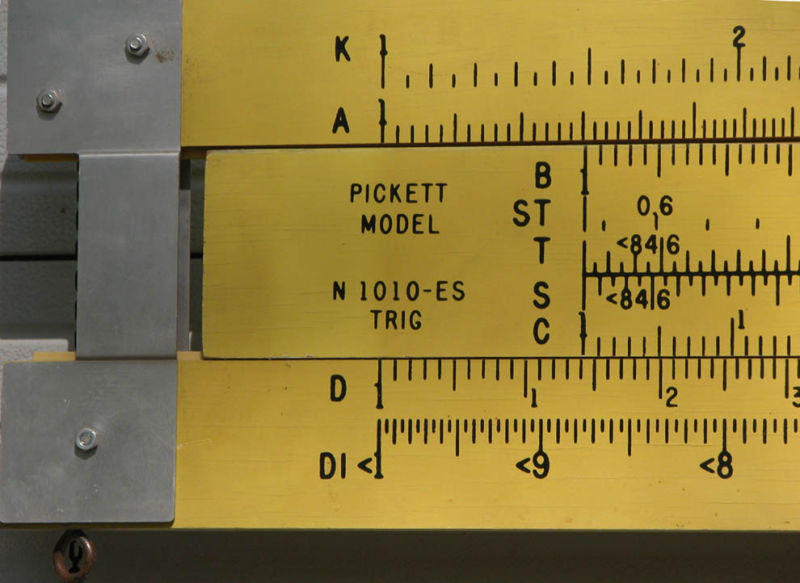

7' Pickett Front Side Detail Next Below

7' Pickett Back Side Detail Next Below

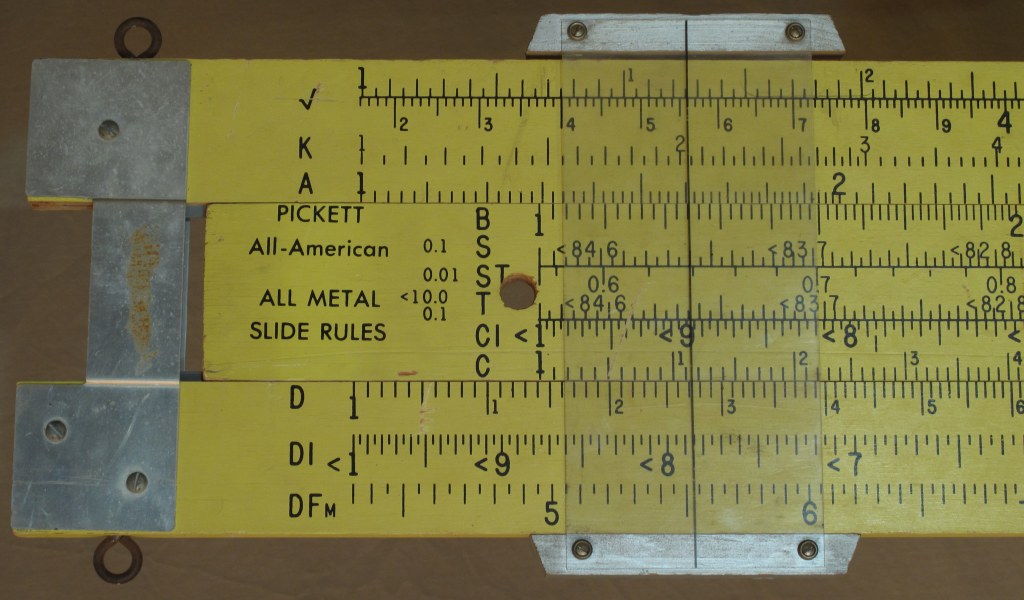

7' Pickett Left Front Detail Next Below

7' Pickett Left Back Detail Next Below

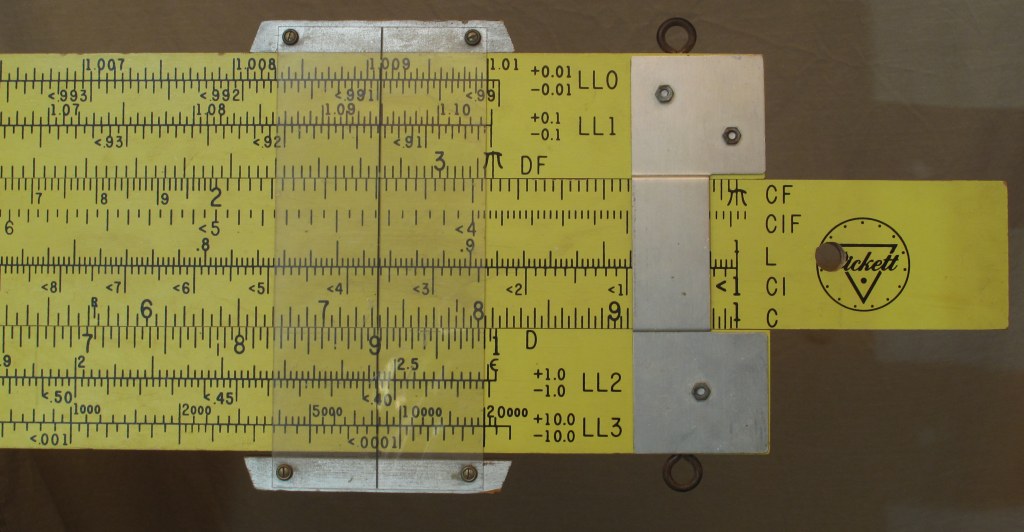

7' Pickett Right Back Detail Next Below
