"FEATURE: Making A Fire-Breathing Mac"

By Mitch Gallagher

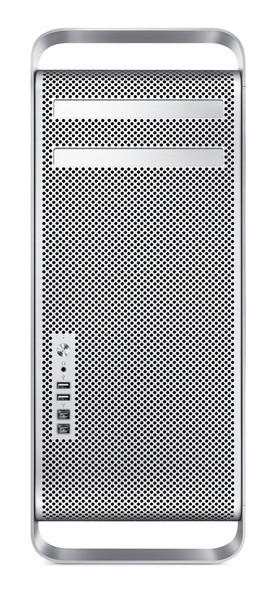

MacPro8-22-largeSince most of us base our studios around computers, it makes sense to ensure that the computers we use are as capable as possible. In my case, my studio has been running on a faithful first-generation dual-G5 Macintosh for a number of years. It’s reached the time when I am compelled to upgrade my studio with a new computer, so I’m moving everything over to a state-of-the-art Nehalem-based (Xeon) 8-core Mac Pro. But even with a stout computer like the new Mac Pro, it makes sense to try to wring every cycle of performance out of the machine that you can — more power is always better in the studio.

Let’s take a look at some of the things we can do to maximize computer performance. Though the items we’ll be looking at are specific to the Mac Pro, the basic concepts we’ll be discussing apply to any computer you might be using in your studio.

As far as the Mac Pro goes, it is a well-appointed machine straight from the factory. It has loads of CPU power from eight cores on two processors, dual monitor outputs, three PCIe slots (plus a double-wide graphics slot), four FireWire 800 ports, seven USB 2.0 ports (counting the two on the keyboard), stereo audio in and out (which supports analog and digital/optical signals), a headphone out, two Ethernet ports, built-in Bluetooth, optional Airport wireless, and more. But even with all that power and connectivity, there are three areas I want to expand: RAM, monitors, and internal storage.

MEMORY

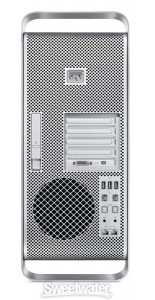

750-MacPro8-22_rear

The Mac Pro I’m putting into my studio came stock from the factory with 6GB of RAM installed. This is a good amount, but given the manner in which memory is managed by some applications, plug-ins, and software instruments, I wanted more. (I’m a firm believer that the most effective way to increase computer performance is to add more RAM.) For example, the operating system requires a certain amount of RAM, and plenty extra should be available for best performance. Then, an application like Logic and its plug-ins and third-party plug-ins require another chunk of RAM. And some software instruments, such as Logic’s EXS24 sampler and Native Instruments’ Kontakt sampler, also require RAM outside the host application for sample storage use — and with the size of sample libraries these days, more RAM is definitely better!

While the 6GBs of RAM that came stock, or even smaller amounts, will function well, having plenty of extra RAM will make everything operate much faster. So, the first upgrade is to take the RAM up.

Apple’s Mac Pro computers feature four RAM slots per processor, but the best performance is achieved with the first three of those slots for each processor filled. The computer came with six 1GB sticks, three per processor. For my purposes, I wanted to go to 12GB of RAM, so I replaced the six 1GB sticks with six 2GB sticks. But, since I have six unused 1GB RAM sticks lying around, I decided to move two of the 1GB sticks into the remaining two RAM slots, for a total of 14GB. This should be more than enough memory for great performance with any music/audio application, plug-in, or instrument.

GETTING INSIDE THE MACHINE

One thing that Macs have had going for them for several recent generations is that they’re exceptionally easy to get inside of and to expand. Even given that tradition, the new Mac Pro computers are works of engineering elegance; adding RAM and other expansions to them is a piece of cake! Replacing the RAM in the new (Nehalem) Mac Pros is a simple process with just a few steps:

First, with the computer plugged in but turned off, discharge any static electricity your body may have accumulated by touching the metal case of the computer. Unplug all cables connected to the computer, including the power cable. (Text continues after photos, below.)

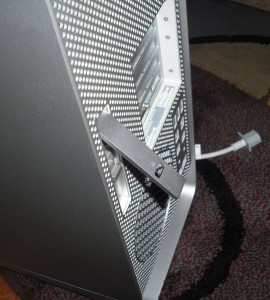

Pull the latch on the back of the Mac to release the side panel.

Pull the latch on the back of the Mac to release the side panel.



Tilt the top of the side panel out, then lift the side panel off the computer.

Tilt the top of the side panel out, then lift the side panel off the computer.

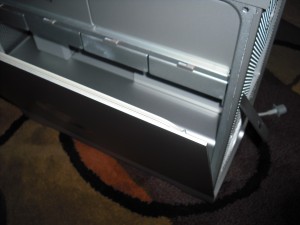

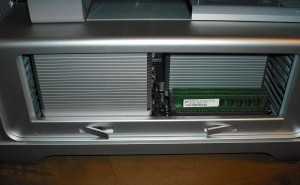

Push the outsides of the latches at the bottom of the processor tray.

Push the outsides of the latches at the bottom of the processor tray.



Pull the latches to release the processor tray.

Pull the latches to release the processor tray.

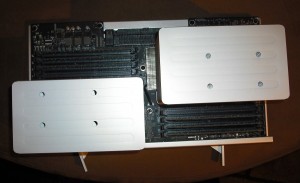

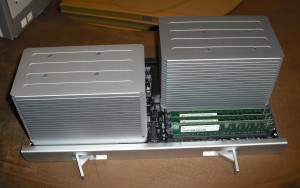

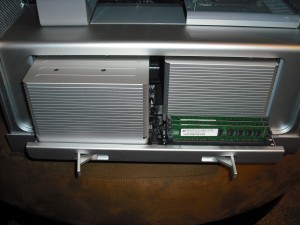

Slide out the processor tray.

Slide out the processor tray.

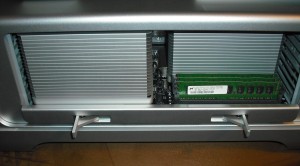

The computer came with 6GB of RAM installed. Three sticks in these slots, and three sticks in the slots behind the second processor (on the left).

The computer came with 6GB of RAM installed. Three sticks in these slots, and three sticks in the slots behind the second processor (on the left). Open the ejector clips at the end of each RAM slot, and pull out the existing stick (if one is installed).



All six factory RAM sticks have been removed; all eight RAM slots are now empty.

All six factory RAM sticks have been removed; all eight RAM slots are now empty.

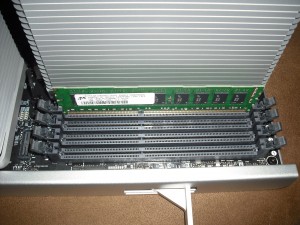

Slide in the RAM sticks until the ejector clips snap into place. The sticks have a slot in the bottom that only allows them to be inserted in one direction, so you don't have to worry about putting them in the wrong way. NOTE: Be careful when handling RAM sticks; grasp them from the ends, and never touch the gold traces or components.

Slide in the RAM sticks until the ejector clips at the end of of the slot snap into place. The sticks have a slot in the bottom that only allows them to be inserted in one direction, so you don't have to worry about putting them in the wrong way. NOTE: Be careful when handling RAM sticks; grasp them from the ends, and never touch the gold traces or components.



DSCF0012

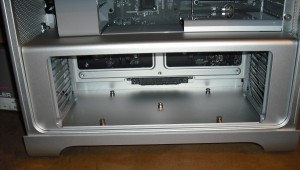

Slide the processor tray back into the computer. The tray will pretty much guide itself using the pins on the bottom of the computer chassis. No pressure should be required to get the tray back in.

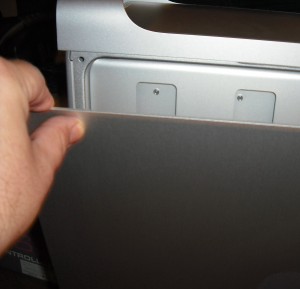

Close up the computer by repositioning the side panel and closing the latch on the rear of the computer.

Close up the computer by repositioning the side panel and closing the latch on the rear of the computer.



Memory Slot Utility

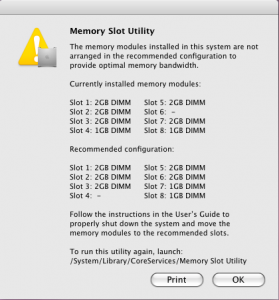

 Boot the computer. If there is a RAM configuration that will provide better performance than the one you have selected, then the Memory Slot Utility will open and suggest a more optimal arrangement of the RAM sticks in the slots.

Once you’re finished, and the computer is happy with your RAM configuration, choose “About this Mac” under the Apple menu and verify that all the RAM you installed is showing up.

I’ve installed a lot of RAM in a lot of computers, and this is the easiest process I’ve ever experienced.

 INTERNAL STORAGE

The Mac Pro supports up to four internal SATA or SAS (Serial Attached SCSI) hard drives and up to two internal SuperDrive CD/DVD optical drives. My machine came with one internal 640GB hard drive and one SuperDrive installed. I’ll be adding three more 500GB hard drives to the machine. The 640GB drive will be the system drive and will hold the operating system and all the software. One 500GB drive will be dedicated to recording audio tracks. One will be dedicated to storing large libraries for software instruments — large virtual drums in particular. The last 500GB drive will be used for backup.

As with installing RAM in the computer, adding additional hard drives to the Mac Pro is an easy process.

With the computer plugged in but turned off, discharge any static electricity your body may have accumulated by touching the metal case of the computer. Unplug all cables connected to the computer, including the power cable. (Text continues after photos, below.)

Remove the right side panel (when facing the front) of the Mac by pulling the latch on the back, then tilting the top of the panel out and lifting the panel up and away from the computer.

Remove the right side panel (when facing the front) of the Mac by pulling the latch on the back, then tilting the top of the panel out and lifting the panel up and away from the computer.

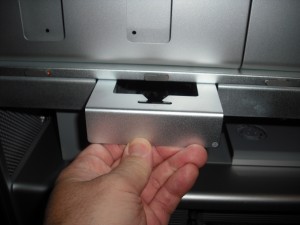

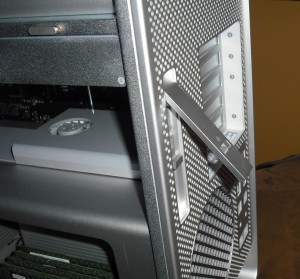

Lift the latch (the same latch on the rear panel that locks the side panel in place) to release the hard drive carriers.

Lift the latch (the same latch on the rear panel that locks the side panel in place) to release the hard drive carriers.





Slide out the carrier(s).

Slide out the carrier(s).



Position the carrier over the hard drive; be careful not to drag the attached screws across the circuitry on the drive.

Position the carrier over the hard drive; be careful not to drag the attached screws across the circuitry on the drive.

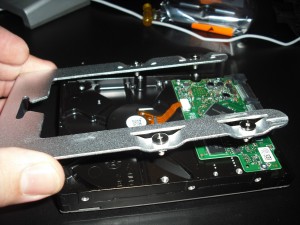

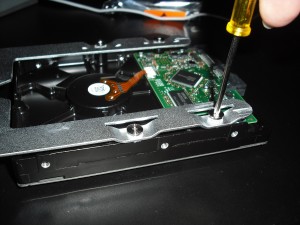

Use the screws attached to the carrier to attach it to the hard drive. This is the only part of the process that requires a tool — a small Phillips screwdriver.

Use the screws attached to the carrier to attach it to the hard drive. This is the only part of the process that requires a tool — a small Phillips screwdriver.

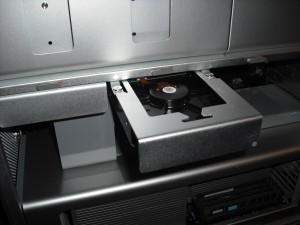

Lift the latch on the rear of the computer and slide the hard drive carrier back into the computer.

Lift the latch on the rear of the computer and slide the hard drive carrier back into the computer.

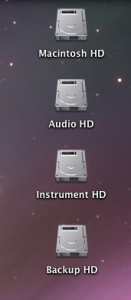

Close up the computer. When you start up the machine, the hard drives you’ve added should show up on the desktop, or the operating system should tell you that the new drives need to be initialized.

Close up the computer. When you start up the machine, the hard drives you've added should show up on the desktop, or the operating system should tell you that the new drives need to be initialized.

TAKING IT FURTHER

Need more hard drive space? You could install larger drives in the machine — new Mac Pros can use up to 2TB drives for a total of up to 8TB of storage!

Or, if you need another separate drive, there are solutions available that allow you to install one in the unused optical bay, for a total of five internal hard drives. There is even one solution that will isolate the drive from the optical bay and reduce any ambient noise it creates. (Google something like “add 5th hard drive Mac Pro” to find information.) A fifth drive will show up and be accessible to the Mac OS just as any other internal drive would. However, if you’re running Windows on your Mac, it will not be able to see the fifth hard drive.

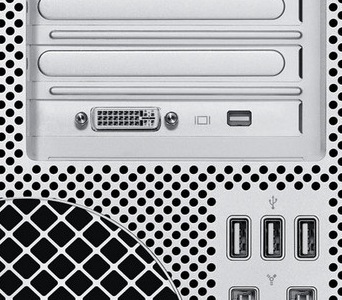

The Mac Pro's video card features two outputs, one DVI, the other a Mini DisplayPort.

The Mac Pro's video card features two outputs, one DVI, the other a Mini DisplayPort.

MONITORS

The Mac Pro comes with a dual-monitor video card installed. One monitor port is a dual-link DVI port, which will connect to Apple monitors or other monitors up to 30 inches in size. The second port is a Mini DisplayPort, which supports direct connection of the new Apple LED Cinema display. (A similar port is found on other newer Mac models, such as the MacBook Pro and the Mac Mini.) You can also get adapters for converting the Mini DisplayPort to VGA or DVI. I have two Acer 22-inch monitors in my studio, which connect via DVI or VGA; I’ll be using both these monitors with the Mac Pro. One connects to the DVI out, the other to the Mini DisplayPort, using an adapter.

NOW WE’RE ROCKING

With these expansions, I’ve got a computer that will tear its way through just about any task I will be throwing at it — though I’m sure there will be new software out soon that will make me want even more power! But until then, these simple upgrades have taken the computer to an entirely new level.



feature1Since most of us base our studios around computers, it makes sense to ensure that the computers we use are as capable as possible. In my case, my studio has been running on a faithful first-generation dual-G5 Macintosh for a number of years. It’s reached the time when I am compelled to upgrade my studio with a new computer, so I’m moving everything over to a state-of-the-art Nehalem-based (Xeon) 8-core Mac Pro. But even with a stout computer like the new Mac Pro, it makes sense to try to wring every cycle of performance out of the machine that you can — more power is always better in the studio.

2buslt-large

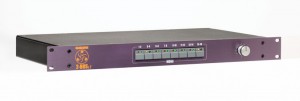

Dangerous Music 2-BUS LT Analog Summing Mixer

Analog summing is a hot topic these days; it seems as if every day there is another story or press release about some “name” engineer making the move to using an external summing box or mixer with his DAW. But aren’t DAWs supposed to be the “one-stop” tool for all audio creation? Does analog or external digital summing really sound that different from in-the-box summing in your DAW?

A few years ago, when I was the editor in chief at EQ magazine, I reviewed a product called Awesome DAWSUM. It was a 2-CD set created by engineer/producer/gear guru Lynn Fuston, and it contained stereo WAV files of the same mix done using 29 different platforms: various DAWs, digital mixers, analog mixers, and dedicated summing boxes. Nothing changed from mix to mix, except for how the final stereo summing was accomplished. The idea was for you to load the mixes into your DAW and attempt to identify which was which based purely on the sonics. Could you pick out the DAW summing? Hear a particular mixer? How about detect when a summing box was used?

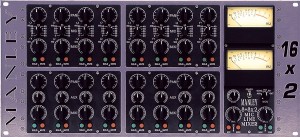

Manley Laboratories 16x2 Analog Mixer

Manley Laboratories 16x2 Analog Mixer

Listening blind, the test was tough. However, with repeated listening, I did learn to identify particular tracks. And when I sat down with the key to what was what, and learned the sound of particular summing hardware or software, I was then able to pick out more of the various platforms.

But I won’t tell you that the differences were significant, or that it was easy — even under very controlled conditions — to pick out different mixes, let alone determine which was “better.” Would a “casual” listener hear the difference? Maybe, maybe not. I came away skeptical of the value of external summing. Still, what I couldn’t argue was that there were subtle sonic differences between the various summing platforms.

ssa2b-large

Tube Tech SSA 2B Stereo Summing Amplifier

Then, about six months ago, I had a chance to install a couple of Dangerous Music summing boxes — a D-Box, which was later replaced with a 2-Bus LT and a Monitor ST — into my studio and to live with them for a while. After redoing a couple of mixes I had previously done entirely in the box, I was convinced: summing is the way to go — but maybe not for the reasons you expect!

So, what happens when you add a summing box? There are several areas where you may or may not notice changes.

Sound Quality

You will likely notice a change in the overall sound quality of your mixes; I encourage you to try some blind listening tests to see just how much real difference you can perceive. Some engineers suggest that the biggest difference results from the increase in headroom that a summing device can provide over a DAW’s summing bus; others dispute this.

TL Audio Fat Track Tube Summing Mixer

TL Audio Fat Track Tube Summing Mixer

External Processing

Incorporating external analog processing, such as compression or EQ, into a system using external summing works well — and it eliminates an extra set of digital-to-analog and analog-to-digital conversions that your audio would go through if you were to incorporate an analog processor into a DAW insert loop. Not long after I added the summing box to my rig, I began lusting after analog processing hardware — compressors and equalizers, to be exact. And once you start incorporating analog gear, a patch bay is the next item you may find yourself wanting, in order to be able to route the audio through the processors flexibly.

atb16-large

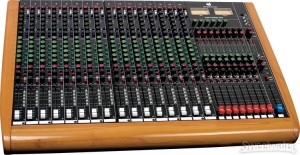

Toft Audio ATB16 Analog Console

Using analog hardware in your mixes moves you out of the realm of modeled coloration — which, admittedly, can sound awesome — and back into the world of real analog coloration. Real tubes and real analog circuits will impart a “sound” to your mixes. The tradeoff is that you’ll need to carefully manage gain staging, control background noise, and…horrors…have to make your own settings by hand, without using presets.

Feel

This may sound strange, but the biggest difference I noticed when switching over to a summing box was the feel of doing the mix. It took me back to my days of working on an analog console. There was a “feel” and a response to making EQ changes using a console that is different from making those changes in a DAW — not better, not worse, just different. Even when using a plug-in EQ through a summing box, there is a difference to how it feels and how I perceive it. I find I enjoy it.

Along the same lines, I found myself using less compression when I used a summing box than when I made an in-the-box mix. Whether this is because of the analog sound, the headroom difference, or some other factor, I don’t know. But I do know that I ended up compressing less, which resulted in more open, clarified mixes with better dynamics.

2bus-large

Dangerous Music 2-BUS Analog Summing Mixer

The biggest thing you give up when you go to an external summing device is the recall of all your mixer and processor settings. If all you’re doing is summing externally through a dedicated summing box, then your DAW’s recall will still work fine. But, as soon as you incorporate any kind of analog processing or analog mix changes, if you then want to recall a mix, you’re going to have to manually reset the knobs and buttons on the analog pieces. This means keeping careful records of all the settings and routings you’re using for a mix.

Using a summing box has definitely made a big difference in how I work and in the results I achieve. If you’re looking for a huge sonic difference from summing alone, then you may or may not get your wish. But the other benefits are well worth exploring. Whether you go with a mixer for summing or use a dedicated summing box, moving outside the box may be just what you need to bring your mixes to life.

filed in Issue 1 on May.20, 2009

summingAnalog summing is a hot topic these days; it seems as if every day there is another story or press release on some “name” engineer making the move to using an external summing box or mixer with his DAW. But aren’t DAWs supposed to be the “one-stop” tool for all audio creation? Does analog or external digital summing really sound that different from in-the-box summing in your DAW? A few years ago, when I was the editor in chief at EQ magazine, I reviewed a product called Awesome DAWSUM. [...]
