GENERAL INFORMATION

INTRODUCTION
For over twenty years, Trek II  Products has designed and manufactured a wide array of quality products for the repair, rebuilding and upgrading of classic Hammond organs.  During that time it has been our privilege to help preserve and restore thousands of these remarkable instruments.  Our commitment is to provide consistent, reliable products and maintain our distinction for integrity in the industry.


PRODUCT USAGE
Please consult the  PRODUCT USAGE CHART to help select products for specific Hammond models.


INSTRUCTIONS
All products requiring more than trivial installation come with detailed instructions.  However, the instructions assume a knowledge of Hammond organs and terminology.  All installations requiring connection to the AC power line should only be done by qualified personnel.


SCHEMATICS
In addition to complete installation instructions, all electronic products are of course provided with schematics.


CUSTOMER SUPPORT
We pride ourselves in our friendly customer service, dedication to customer satisfaction and our expert product support.  Before, during, and long after the sale.



TREK II PRODUCTS LIMITED WARRANTY
Trek II Products warrants it's products against defects in material and workmanship for a period of two years from the original purchase date. This warranty is void if the unit has been damaged by accident, neglect, abuse, improper service or other causes not arising out of defects in workmanship or materials. Trek II Products shall not be liable for any loss of use or for incidental or consequential damages of any kind.

During the warranty period, your Trek II product will be either repaired or replaced without charge, at the option of Trek II Products, when returned securely packed with shipping prepaid.


CUSTOM ORDERS
For special installations many of our products can be supplied specially modified to provide additional features or enhanced performance.  In addition to our standard products, we also offer custom design services for unusual or unique installations.  Please contact us with your special requirements or product suggestions.


ORDERING

FOR BEST SERVICE PLEASE PROVIDE:

• The model or description of the item you wish to order.
• The model (and if necessary the serial number) of the instrument it is to be installed in or used with.
• Name, shipping address and daytime phone number.

ORDERING OPTIONS

PHONE
Orders may be phoned in 24 hours a day, seven days a week.  During normal weekday business hours one of our staff will be happy to take your order.  After normal business hours or on weekends, you may leave your order on our answering machine. You will receive a phone confirmation of your order.

FAX
Fax us your order. 732-214-9257

E-MAIL
E-mail us your order Email : Contact@TrtekII.com
Please do not send credit card information via e-mail.

MAIL
Mail orders are always welcome.  Be sure to include your daytime phone number so that we may contact you if there are any questions regarding your order.

PAYMENT OPTIONS

C.O.D.
Domestic orders can be shipped C.O.D.

PRE-PAID
Mail orders may be pre-paid with a check or money order.  Contact us for a quote including shipping.

CREDIT CARD
For your ordering convenience, we accept MasterCard, Visa  and American Express cards.

EXPORT ORDERS
Export orders can not be shipped C.O.D..  All export orders must be prepaid in US funds, in the form of  credit card, international money order, bank check, or wire transfer.  Contact us for a quote including shipping.  If requested, we will be pleased to mail or fax a proforma invoice.  Export orders are shipped by Airborne Express or Global Express Mail.  Please consult section on LINE VOLTAGE CONSIDERATIONS to insure proper compatibility.

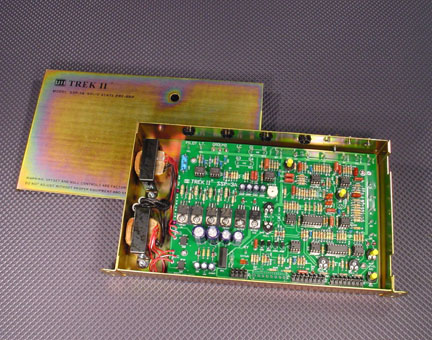

Replaces pre-amps used in most standard Hammond tone wheel consoles.  Building on the heritage of the original SSP-3, the new SSP-3A has been carefully designed to faithfully reproduce the response of the original tube pre-amp when it was new.  Eliminate the intermittent static, crackling, loss of volume, and general degradation of sound quality that can be caused by aging components in the original pre-amp.  Click on photo for enlargement

• Built in reverberation utilizing a full size Accutronics three spring delay line
• Built in power supply
• Built in Leslie 122 tremolo control circuitry, functions with original tremolo switch or TS-2
• Built in power on circuitry for 11 pin Leslies
• Functions with original swell pedal and linkage or can be used with remote floor type pedal.  For portable applications, a custom Ernie Ball volume pedal model EB-100K is available.

PERCUSSION CONTROL HEAD.

By adding the TP-3B percussion control head, the percussion circuitry of the SSP-3 can be utilized to add B-3 type percussion to older consoles which did not originally have this feature.  When purchased together, a package price is available.    Click on photo for enlargement

AUXILIARY AMPLIFIER CHANNELS.

Provides 2 additional amplifier channels and a separate enclosure with input jacks, output jacks and level controls.  These channels may be used to play other keyboard instruments, rhythm units, etc. through their own amplification system, but under the control of the organ swell pedal.  In addition, either input can be routed through the organ sound system by moving a jumper on the circuit board.  When configured this way, the AUX-1 input will be expressed, and the AUX-2 input will be un-expressed.  Click on photo for enlargement

BASS, TREBLE, AND PERCUSSION LEVEL.

Provides precise control over the organ's bass, treble, percussion and overall level.  Mounted on the SSP-3A chassis, these controls allow the organ owner to set sound to his preference and not have to worry about other organists tampering with the settings.  Click on photo for enlargement

BASS, TREBLE, AND PERCUSSION LEVEL END BLOCK.

Provides precise control over the organ's bass, treble, percussion and overall level.  The BTC-2A mounts in place of either left end block and gives the organist the ability to tailor the sound while performing.      Click on photo for enlargement

EFFECTS LOOP.

Provides a separate enclosure with LINE LEVEL effects send and return jacks for adding the effects device of your choice to the SSP-3A  Click on photo for enlargement

SPECIFY ORGAN MODEL

Replaces the AO-15331 two tube (#56-#57) pre-amps used in very early standard Hammond consoles.  Click on photo for enlargement

• Built in power supply
• Built in tremolo control circuitry for 122 type Leslie speakers, functions with original tremolo switch or TS-2
• Adjustable tone control
• Compatible with RV-1C

Adds the famous B-3 type percussion sound to pre-B-3 consoles.  Mounts in place of the upper left hand end block.  Click on photo for enlargement

• Three harmonics... second, third and fifth
• Slide controls for each harmonic
• Adjustable decay rate

Allows the percussion circuitry of the SSP-3 pre-amp to be utilized in older consoles which did not have percussion switches.  Mounts in place of the upper left hand end block.  Features the same four percussion switch functions as the B-3.  Click on photo for enlargement

• Percussion, on / off
• Volume, soft / normal
• Decay, fast / slow
• Harmonic, third / second

For use in most standard Hammond consoles.  Uses a full size three spring Accutronics delay line for a natural reverb sound.  Designed specifically to interface with vacuum tube circuitry of Hammond tone wheel consoles.  Click on photo for enlargement

NOTE: The RV-1C is not compatible with BV, CV or DV type organs.

SPECIFY ORGAN MODEL

Provides 25 notes of deep rich bass with sustain and pluck effect.  Installs in standard consoles utilizing the existing pedal switch contacts. Separate 8' and 16' outputs function with the existing pedal drawbars.  Although designed to be played from the existing pedals, it will work with any single make contact assembly or keyboard.  Click on photo for enlargement

• Adjustable sustain length
• Adjustable pluck effect
• Quartz tuning accuracy
• Separate outputs available for connection to external amplifier

SPECIFY ORGAN MODEL AND SERIAL NUMBER

Works with most Hammond organs utilizing a top octave generator IC. Will allow the organ pitch to be shifted in discrete semitone steps as much as 2 semitones sharp or 4 semitones flat.  Click on photo for enlargement

• Shift your playing into a singer's vocal range
• Modulate from key to key
• Accompany other instruments playing in "difficult" keys

SPECIFY ORGAN MODEL AND SERIAL NUMBER

Special version of the TR-3 made specifically for X-66 organs.  In addition to adding the transposer function, the TR-3-6 replaces the entire 12 note tone wheel generator used in these organs, making it a cost effective solution in cases of motor failure.  Click on photo for enlargement

The ECH-1 choke pair is a direct replacement for the #003-025859 chokes used in late E-100, E-200, and E-300 organs as well as the #003-030753 (AO-28761-0) choke used in early E-100 organs.  Click on photo for enlargement

The ERT-1 power transformer is a direct replacement for the #003-028788 (AO-28788) transformer used in all E-100, E-200, and E-300 series organs and includes a protective fuse.    Click on photo for enlargement

Replaces both the #003-030241 (AO-30241) power transformer and rectifier tubes used in Hammond H-100, H-200, and H-300 series organs.  A protective fuse is included.  Click on photo for enlargement

Direct replacement for the #003-024956 (AO-24956-1) power transformer used in the AO-44 reverb amplifier.  This amplifier was used in many A-100 and M-100 organs.  A replacement 1K 1W resistor and a protective fuse are included.  Click on photo for enlargement

Replaces both the power transformer and rectifier tube in the following organs: A-100 (power amp), L-100, M, M-2, M-3, M-100, PORTA-B.  Click on photo for enlargement

Direct replacement for the #003-032030 (AO-032030) power transformer used in all X-66 organs.  A protective fuse kit is included.  Click on photo for enlargement

The LBG-10 is a reproduction of the original #543-051037 grommet used in the lower rotor bearings as well as in the idler spring assembly of many Leslie models.  Sold in packages of 10 only.  Click on photo for enlargement

Allows older two channel Leslie speakers like the 710 and 720 to function as single channel cabinets making them much easier to utilize with a wide variety of instruments.  As originally manufactured, these older cabinets do not function acceptably with single channel full frequency range signals.  Click on photo for enlargement

The LIA-1 is an improved version of the original #522-050708 idler spring assembly.  A slightly oversized wheel helps provide longer operating life.  Used to tension the treble horn drive belt in the following Leslie models:  21H, 22H, 22R, 45, 47, 51, X77L, X77P, 122, 122R, 122RV, 122V, 142, 145, 147, 147RV, 222, 222RV, 242, 245, 247, 247RV, 251, 257, 351, 357, 600, 710, 760, 770, 900, 910, 925.  Click on photo for enlargement

LPL-60  Lower 60 Hz pulley.  Reproduction of the original #522-018309 pulley used to drive the lower rotor in the following Leslie models: 122, 122R, 122RV, 122V, 142, 145, 147, 147RV, 242, 245, 251, 760, 770.  LPU-60  Upper 60 Hz pulley. Reproduction of the original #522-050500 pulley used to drive the upper horn in the following Leslie models: 21H, 22H, 22R, 45, 45A, 47, 51, X77L, X77P, 122, 122R, 122RV, 122V, 142, 145, 147, 147RV, 222, 222RV, 242, 245, 247, 247RV, 251, 257, 351, 357, 600, 710, 760, 770, 900, 910, 925.    Click on photo for enlargement

Allows most single channel Leslie speakers to be driven by your portable organ, guitar, synthesizer or mixer. Two 1/4" phone jack inputs, one for high level signals, one for low level signals.  Click on photo for enlargement

• Foot switch tremolo control
• Foot switch power on / off
• Power and tremolo indicators
• Input level and tone controls
• Four different outlets to accommodate each of the Leslie families listed below. May be used singularly or in any combination. (Leslie connector cables not included.)

Replaces the end blocks used on the upper or lower manual of standard Hammond consoles.  Allows simple mounting of custom switches or controls in a location easily accessible to the organist.  Click on photo for enlargement

	These thin fiberglass sheets are shaped to fit between the keyboards and case of standard Hammond consoles to prevent woodwork damage when raising or removing manuals.  Made from durable 1/32" G-10 fiberglass with rounded corners.  Click on photo for enlargement

Adds an INSTRUMENT LEVEL effects loop to allow the use of guitar pedal type effects devices on either the upper or lower manual of many Hammond organ models.  Two units can be used for an effects loop on each manual.  Click on photo for enlargement

	Exact replacements for the adhesive backed expression mats used on many Hammond organ expression pedals.  To insure proper adhesion, the old mat as well as its adhesive must be thoroughly removed.          Click on photo for enlargement

	For later standard Hammond consoles such as the A-100 series, B-3 and C-3.  Durable black finish with fine texture.  Complete with KBF-1 upstop felt and new black mounting screws.    Click on photo for enlargement

NOTE:  The FS-300 are screened with the classic gold Hammond logo.  Express permission for this use has been granted by Hammond Suzuki.

A cost effective alternative to removing and disassembling Hammond tone wheel generators when defective frequencies are encountered.  Simple three wire installation.  Generates a sine wave output of any tone wheel frequency.  The GNR-1A has a built in power supply and will replace one frequency.  Each GNR-2A will replace a single additional frequency, but has no power supply, relying on that of the GNR-1A.  As many as three GNR-2A units may be powered by a single GNR-1A.

Click on photo for enlargement

The KBF-1 is an exact reproduction of the #042-022369 B-3 type upstop felt.  An essential part of any Hammond console restoration or busbar lube job, it helps restore the "new feel" and quiet operation to the keyboard.  Easily installed on late A-100, B-3, C-3, D-100, and RT-3 organs. (These organs are identified by front strips that are secured with Phillips head screws.)  Also usable on earlier consoles.  However, front strip removal on these organs requires substantial disassembly of the keyboards.  Click on photo for enlargement

The KBF-2 is an exact reproduction of the #042-001701 B-3 type downstop felt.  An essential part of any Hammond console restoration or busbar lube job, it helps restore the "new feel" and quiet operation to the keyboard.  Easily installed on late A-100, B-3, C-3, D-100, and RT-3 organs. (These organs are identified by front strips that are secured with Phillips head screws.)  Also usable on earlier consoles.  However, front strip removal on these organs requires substantial disassembly of the keyboards.  Click on photo for enlargement

Exact replacement for the #999-006009 brown oval head mounting screws used to secure the music rack mounting base in standard tonewheel consoles.  Replaces missing or damaged originals.  Set of 4  Click on photo for enlargement

The OBL-2 allows standard Hammond consoles to be connected via a 1/4" output jack to an external amplification system.  The box is made from heavy gauge anodized aluminum and easily mounts under the generator shelf or other convenient location.  The unit has both an overall output and one that is low pass filtered.  The low pass output is useful when using a bass amp to reinforce the organ low end.  A level control is provided to allow the output signal to be adjusted to match the amplifier input requirements.  Click on photo for enlargement

NOTE: Pre-amps in early console models (A, AB, AV, B, BA, BC, BCV, BV, C, CV, D, DV, and G) receive their DC operating voltage from the tone cabinet and will not produce an output if  the tone cabinet is disconnected.

The OBX series of outlet boxes are the same size, shape and color as those originally provided on BV, B-2, and B-3 organs.  OBX units may be used to replace damaged or missing outlet boxes as well as to upgrade older consoles not originally equipped with outlet boxes.  Designed to be mounted on either side of the console, end to end (multiple units), or in an inverted position (for C style cases).  Click on photo for enlargement

• OBX-0

Provided with no knockouts or connectors.  The blank panel may be punched or drilled by the installer to accept non-standard connectors.  May be used in place of, or in addition to a standard outlet box.

• OBX-2

Pre-wired with an original style two conductor AC input connector and 1 tone cabinet connector.  (Specify type)
Knockouts in unused positions allow future installation of additional tone cabinet connectors.

• OBX-3

Pre-wired with a three conductor (grounded) IEC 320 type AC input connector and 1 tone cabinet connector.  (Specify type)  Knockouts in unused positions allow future installation of additional tone cabinet connectors.

ADDITIONAL TONE CABINET CONNECTORS
Each OBX-2 and OBX-3 is built to order and can be supplied with as many as 4 pre-wired tone cabinet connectors in virtually any combination of pre-wired 5, 6, 9 or 11 pin types.  (Do not exceed power switch rating.)

OBX-MTG  MOUNTING KIT

The optional OBX-MTG mounting kit may be used to install the outlet boxes in A-100 organs, cut downs, or other applications where mounting to a flat surface is desired.  Click on photo for enlargement

SPECIFY TYPE AND QUANTITY OF TONE CABINET CONNECTORS

Identical to the RSP-1, but without the switch holes and lettering.  Useful for covering the reverb control opening in A-100 organs and other custom applications.  Click on photo for enlargement

Machined from heavy gauge aluminum.  Replaces the #061-023547 thin stamped "instruction plates" used on later A-100, B-3, C-3, D-100 and RT-3 Hammond consoles.  Black anodized finish.  Includes switch mounting hardware.  Click on photo for enlargement

Exact replacement for the #841-000001 small black oval head mounting screws used to secure switch plate.  Replaces missing or damaged originals.  Set of 4  Click on photo for enlargement

Replaces silent / sound switches used on most Hammond rhythm units.  Replaces the following Hammond part numbers:  #008-045512  #008-050627  #008-053186  Click on photo for enlargement

Reproductions of the thumb screws used to secure the back panels of later standard Hammond consoles.  TBS-1  Solid brass with bright brass finish  TBS-2  Solid brass with classic brown finish  Sold in pairs  Click on photo for enlargement

Mounts in place of  the lower left hand end block on standard Hammond consoles.  Allows convenient rocker switch control of the tremolo function.  Normally provided with a two position switch.  Also available with a three position switch for use with Leslies designed with a stop function.  Two electrically isolated switch sections allow easy control of dissimilar Leslies with a single switch.  Pre-punched mounting hole provided for addition of a reverb or other control in the same enclosure.  Click on photo for enlargement

NOTE: When ordered along with the RV-1C or SSP-3A , the TS-2 can be supplied with the reverb control pre-installed in the end block cover.

SPECIFY LESLIE MODEL(S)

Provides all the features of the TS-2 with the addition of a three position ECHO / ENSEMBLE / MAIN switch compatible with 4H echo kit tone cabinet switching.  Click on photo for enlargement

NOTE: When ordered along with the RV-1C or SSP-3A , the ETS-2 can be supplied with the reverb control pre-installed in the end block cover.

SPECIFY LESLIE MODEL(S)

Designed specifically to supply a stable quartz regulated 60 HZ source for tone wheel generator organ motors.  Allows organ to play precisely in tune even in countries where the line frequency is not 60 HZ or locations where the line frequency is not stable or accurate.  Does not require additional switches or changes in the organ starting procedure.  Click on photo for enlargement

SC-60D-1  For self starting organs
SC-60D-2  For non self starting organs

NOTE: Organs which have a chorus generator (BC, BCV, D, DV, G, and GV) require a special version of the SC-60D. Consult factory for details.

NOTE: Step-down transformers as well as adaptor plugs for most countries are also available.  Contact factory for details.

SPECIFY ORGAN MODEL

Allows the rotors of Leslie speakers manufactured for 60 HZ operation to rotate at the proper speed when operating on 50 HZ.  Replacement set for upper and lower rotors.  Click on photo for enlargement

Allows the rotors of Leslie speakers manufactured for 60 HZ operation to rotate at the proper speed when operating on 50 HZ.  Replacement set for upper and lower rotors.  Click on photo for enlargement

LINE VOLTAGE CONSIDERATIONS

When used outside of the U.S., special care must be given to specify the correct line voltage for all products which require connection to the AC power line.  Although many products are available in both 110 Volt and 220/240 Volt versions, this is not the case for every product.  In addition, because a product may be installed inside an organ which is connected to an external step-down transformer, the fact that the local line voltage is 220/240 Volt does not automatically determine that the 220/240 Volt version of a product is appropriate.  The following information is provided to make selection easier.  If further assistance is required, please contact the factory.

E-mail: Email : Contact@TrtekII.com
Phone: 732-214-9200

PRODUCTS AVAILABLE IN 110 VOLT VERSIONS ONLY:

ERT-1
HRT-1
MRT-1
SC-60D-1
SC-60D-2
URT-1

PRODUCTS AVAILABLE IN BOTH 110 VOLT AND 220/240 VOLT VERSIONS:

GNR-1A
RV-1C
SB-2500B
SSP-1C
SSP-3A
TP-2B
TR-3-6

• The 110 Volt version is appropriate for use in organs which were originally manufactured to function on 110 Volts.  This includes 110 Volt organs being used in 220/240 Volt areas with an external 220 to 110 Volt step-down transformer.


• The 220/240 Volt version is appropriate for use in organs which were originally manufactured to function on 220/240 Volts, or have been converted to 220/240 Volts by replacing the internal motors and amplifiers with 220/240 Volt parts.

SPECIAL NOTES REGARDING THE UC-1A:

The UC-1A is available in both 110 Volt and 220/240 Volt versions.  However, since the AC power supplied to the UC-1A is passed along to the Leslie 6 and 9 pin connectors, the UC-1A must be ordered with the same voltage rating as the Leslie(s) being used.

EXAMPLES:

• If you have a 110 Volt Leslie, and 110 Volt line voltage....

Use 110 Volt UC-1A

• If you have a 220/240 Volt Leslie, and 220/240 Volt line voltage....

Use 220/240 Volt UC-1A

• If you have a 110 Volt Leslie, and 220/240 Volt line voltage....

Use 110 Volt UC-1A, and plug the UC-1A into an external 220 to 110 Volt step-down transformer
